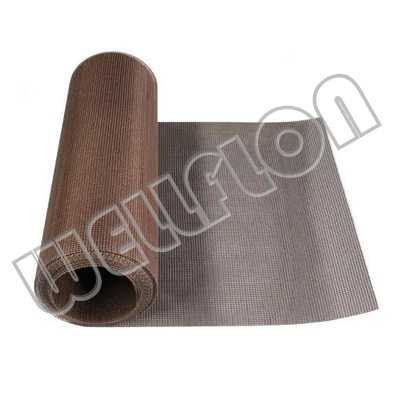

PTFE Teflon Coated Fiberglass Open Mesh Fabric

WellFlon® PTFE Open Mesh is made of glass fiber or Kevlar woven into a mesh base cloth and coated with high-quality PTFE resin. It is ultra-high temperature resistant, flat surface, strong and wear resistant, and is mainly used as a PTFE baking sheet and PTFE conveyor belt.The PTFE Open Mesh defines the specifications by mesh size, mainly including 1*1mm, 2*2.5mm, 4*4mm, 10*10mm, etc., and separates the single latitude and double latitude iron fluoride according to the different warp and weft PTFE Open Mesh.

Features of PTFE Teflon Coated Fiberglass Open Mesh Fabric:

• Anti-adhesive, easy to clean. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;

• Very low coefficient of friction (0.05-0.1), the best choice for oil-free self-lubrication;

• Excellent temperature resistance,PTFE Teflon Coated Fiberglass Meshcan be used for a long time in the temperature range of -170℃~+260℃. After practical application, if placed at 250°C for 200 days continuously, not only the strength will not decrease, but also the weight will not decrease; if placed at 380°C for 120 hours, the weight will only decrease by about 0.6%; at -180°C Under ultra-low temperature conditions, no cracks will occur and the original softness will be maintained;

• Safe and non-toxic, suitable for food production;

• Can resist the corrosion of almost all chemicals;

• Good dimensional stability and strong tensile strength, with good mechanical properties;

• PTFE Teflon Coated Fiberglass Meshhas good flexibility and folding resistance;

• High insulation performance (small dielectric constant: 2.6, tangent below 0.0025);

• Resistant to microwave, high frequency, purple and infrared rays.

• Air permeability - the air permeability of the conveyor belt, reducing the consumption of heat source and improving the drying efficiency;

• Bending fatigue resistance - it has high tensile strength and bending fatigue resistance, and can be used in small wheel warps.




Application of PTFE Teflon Coated Fiberglass Open Mesh Fabric:

• Food processing: heat sealing, frozen food transportation, defrosting belt, drying belt, microwave grill mesh liner, oven baking mesh liner;

• Fusing/ Laminating Belts: transfer printing ironing table fabric, carpet adhesive curing conveyor belt, rubber vulcanization conveyor belt, abrasive sheet curing release cloth, etc.;

• Architectural membrane materials: canopy of various sports venues, station pavilions, parasols, landscape canopies, etc.;

• Drying machines for non-woven fabrics, printed fabrics, silk printing and dyeing, etc.;

• Apparel fabrics, heat shrinking equipment for high frequency and UV drying;

• All kinds of food drying, heat drying conveyor belt for quick-frozen food;

• Polishing and waxing of paper, oiling equipment for equipment installation;

• It is suitable to use Teflon grid conveyor belt for occasions requiring hot air flow and heat processing transmission conditions.

• "Anti-static PTFE Teflon Coated Fiberglass Mesh" can be made after special processing.

Physical Characteristic of PTFE Teflon Coated Fiberglass Open Mesh Fabric:

*If there are special specifications, our company can offer customize service!
